We deliver fast, reliable and accurate total

system and subsystem approach to simulation.

with ANSYS

   Thermal analysis with ANSYS (steady state thermal analysis, transient thermal analysis and thermal stress analysis) using Finite Elements modeling for solid structures (using brick and tetrahedral elements where D/t ratios are relatively small) e.g. tubesheets, flanges, solid shafts, turbine and compressor components etc.

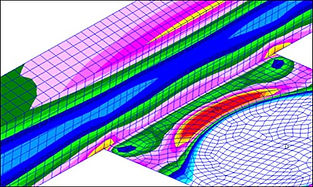

​     Structural and thermal analysis with ANSYS using Finite Elements modeling for solid structures (using brick and tetrahedral elements where D/t ratios are relatively small) e.g. tubesheets, flanges, solid shafts, turbine and compressor components etc. The loadings could include combinations of pressure, temperature distribution, externally applied concentrated and distributed loads.

   Design Uses  with Flow Nex and Ansys

  • System sizing

  • Component sizing

  • Determining operating ranges

  • Flow, temperature, pressure, power consumption, etc.

  • Testing of control philosophy

   Applications examples:

  • combined Refrigeration or ventilation  system

  • Air condidioning systems

  • Hydraulic and pneumatic systems and controls

  • Fluid and Gas systems

  • Real time analysis
